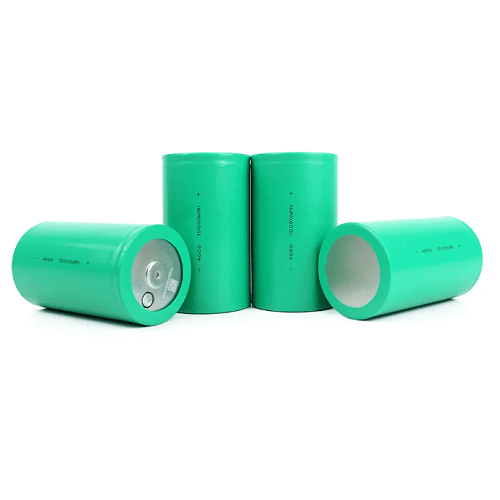

BYD 4680 battery
BYD 3.2V 15Ah 4680 LiFePO4 Battery Cell - Image 2

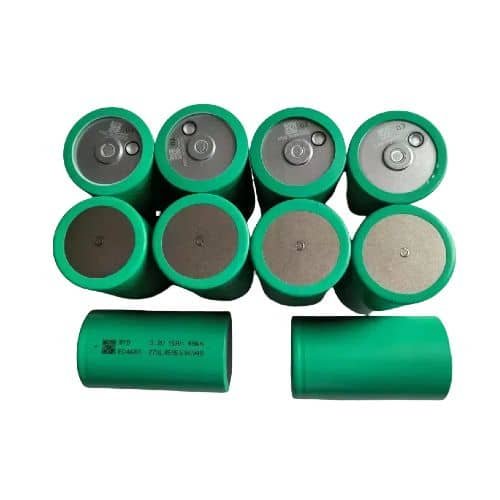

tesla 4680 battery

BYD 3.2V 15Ah 4680 LiFePO4 Battery Cell

Nominal Voltage: 3.2V

Nominal Capacity: 15Ah

Nominal Energy: 48Wh

Max Discharge Rate: 0.5C/1C

Dimension: 46.3mm(diameter), 80.2mm(height)

Net Weight: 335g

Application: energy storage/power tools/cleaning robots/e-bikes/three wheelers battery

Request Quote

Main Features

BYD 4680 LiFePO4 cell has wide applications for energy storage, power tools, e-bikes, portable power stations, cleaning robots, electronic devices, etc

4680 battery features

Specification

Product NameBYD LiFePO4 Battery Cell
ModelFC4680
Brand NameBYD
Rated capacity15Ah
Nominal Voltage3.2V
Nominal Energy48Wh
Max Charge/Discharge Rate1C
Charging Voltage3.2v
Working Voltage2V~3.65V
Max Charging/Discharging Current15A/15A
Energy Density143Wh/kg
Cycle Life4000
Net Weight335g
Dimensions (L*W*H)Φ46.3*80.2mm
Warranty3years
Applicationspower stations/power tools/e-bikes/scooters/cleaning robots/etc

Applications

ak power 18650 applications 1
